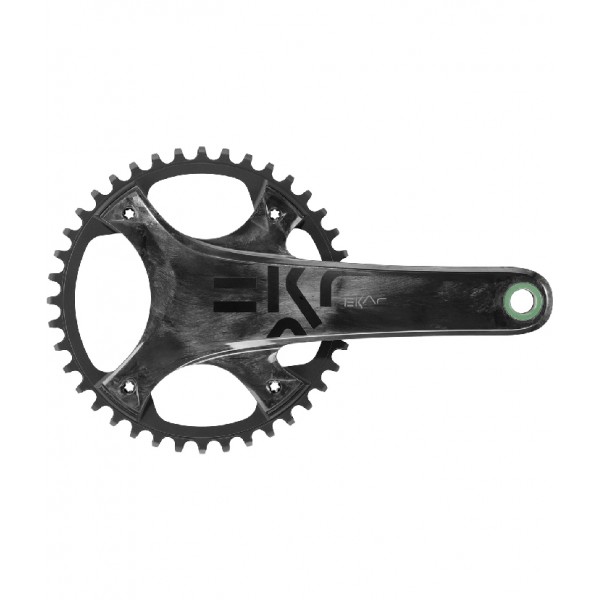

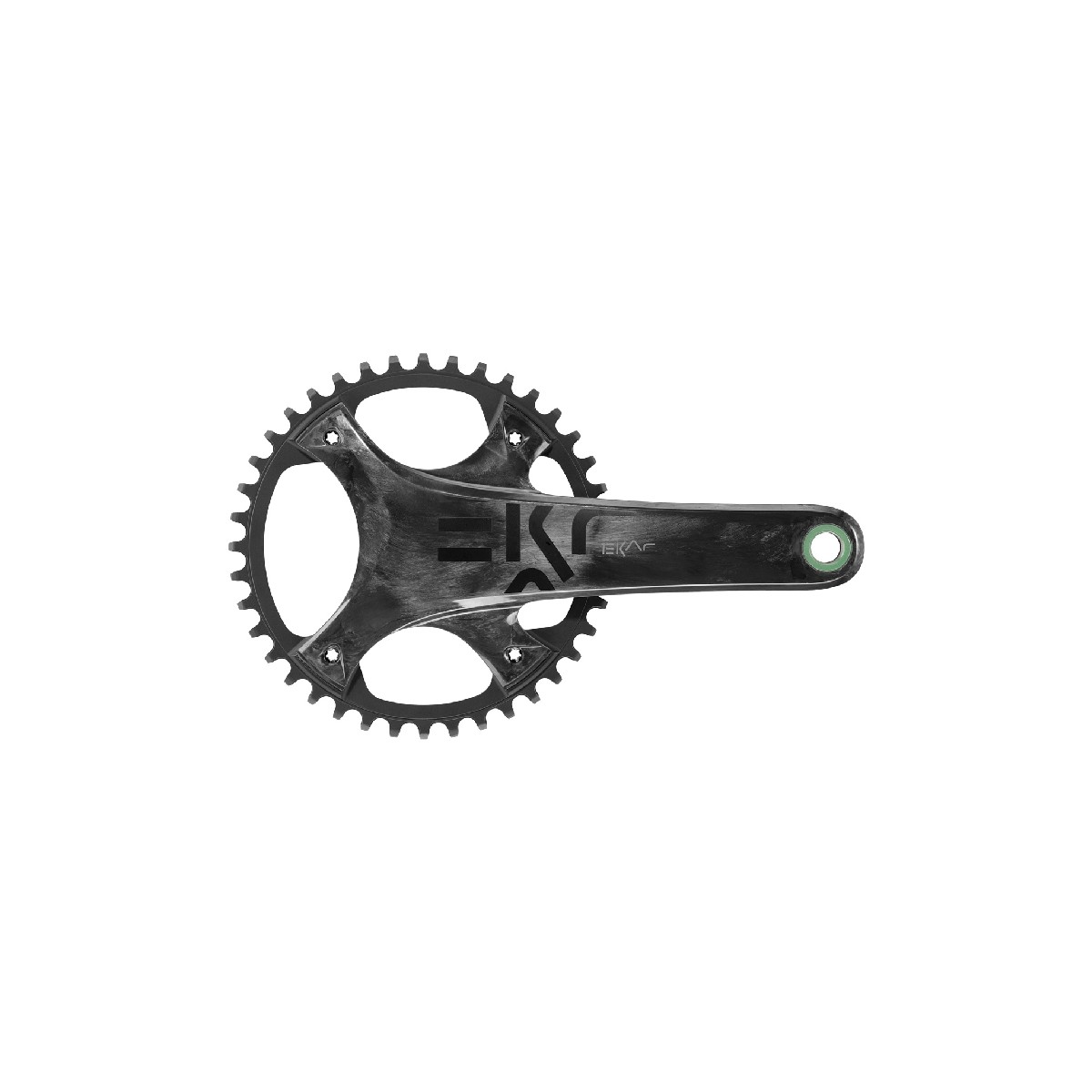

Campagnolo Ekar 13 speed crankset....

Campagnolo Ekar 13 speed crankset. (Only compatible with Ic21/oc21 caps)

€299.90 €365.00 -€65.10
Tax included
The prices displayed are reserved exclusively for online purchases!
Pay over 24 installments

The crankset is the heart of the new 1x Ekar system, with its gearing options covering a wide range of uses.

Of course, the single chainring is simple to use: no derailleur, significantly reduced weight, fewer moving components that collect dirt and can create snags and high chain security, without unnecessary gear overlap – perfect solution for gravel routes .

The two cranks made of UD carbon fiber mount AISI 630 steel semi-axles, in line with the skilful combination of materials of the entire Ekar group, in order to obtain lightweight components, but with maximum efficiency and durability.

The new ProTech™ technology joins the two half-axles inside the bottom bracket, with a single strong screw. The oversized stainless steel bearing is located on the crank, keyed to the half-axle, for maximum smoothness and strength - and to be easily accessible for inspection and maintenance, without having to dismantle the cups.

There are four gear options:

Crank length
Teeth Crankset
Available, shipped in 3-4 days

Description

Campagnolo Ekar 13 speed crankset. (Only compatible with Ic21/oc21 caps)

CHARACTERISTICS

- Lightweight, efficient and safe 1x Ekar system, perfect for gravel discipline

- 2-piece cranks: Ultra-Torque semi-axles in AISI 630 steel and UD carbon arms - robust and lightweight

- Optimized tooth design: efficient transmission and maximum chain reliability

- Semi-pins with Hirth ProTech™ joint: robust, efficient and self-aligning

- Easy access to bearings on the crank

- Easily interchangeable aluminum gears: it is not necessary to dismantle the crankset

SPECIFICATIONS

- Use: Gravel

- Series: Ekar

- Speed: 1x13v

- Combination: Adventure (38T); Pure Gravel (40T), Fast Gravel (42T), Gravel Race (44T)

- Crank length: 165, 170, 172.5, 175 mm

- Axis: Ultra Torque

- Crown: 4 holes

- Bolt circle (BCD): 123 mm

- Chain line:

- Q-factor: 145.5 mm

- Crank material: UD Carbon

- Pin material: Steel

- Crown material: Aluminium

- Weight (manufacturer, 172.5mm, 38T): 615 gr.

- Black colour

Pro-Tech™ bottom bracket NOT included.

Product Details

CMFC21EK1328
8053340455698
